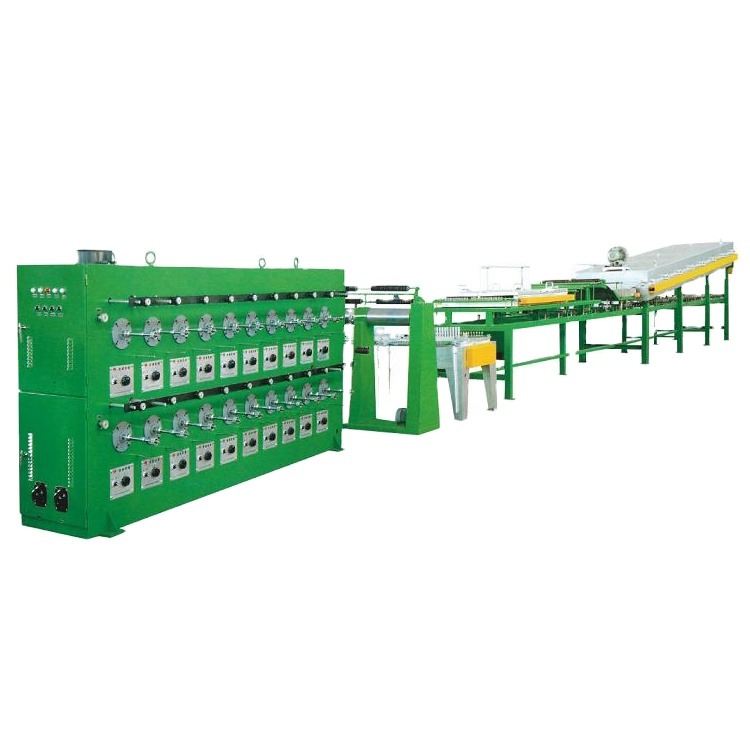

Copper Wire Annealing Tin Coating Machine
It is used for annealing the wire (copper wire , aluminum wire, copper alloy ,
aluminum alloy ,stainless steel wire, low carbon steel wire or others ) to increase the amount of wire softening,
conductive.
(1) Add one room inside the annealer, can make the temperature impartial distribution.
(2) Dual tinning tank design, it can produce two kind of tin-coating copper wire in the same time.
(3)Spooler arranged in double layer can save space.
(4)It is energy-saving(good heat preservation effect) and high efficiency(low maintenance rate).
The Production site for the copper wire annealing furance:
40 head of high speed pipe type annealing furnace, 50cm thickening, four-side reflecting, uniform heating,
thermal insulation and energy saving, has been granted the national patent.
|
Machine type |
JCJX-40H/4.5 |
JCJX-40H/6 |
JCJX-40H/7.5 |
|
No.of wire |
40 |
40 |
40 |
|
Length of Annealing tank (m) |
4.5m |
6m |
7m |
|
Wire dia (mm) |
0.08~0.32 |
0.1~0.65 |
0.1~0.7 |
|
Pressure regulator (kw) |
0.75 |
||
|
Pay-off stand |
Brush or overhead |
||
|
Tinning type |
Hot coating |
||
|
Max speed (m/min) |
300m/min |
||
|
Pay-off bobbin size (mm) |
φ300mm |
||
|
Take-up bobbin size |
5’’~8’’ |
5’’~10’’ |
5’’~10’’ |
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training , includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple problem
(The buyer provides engineer's round trip air tickets, board and lodging, the security).
“It’s the after-sales support that makes delivery complete”.
(1)Free service guarantee period is: 12 months after shipping (except wearing parts)
(2)Provides long term spare supply, technical support and maintenance service for the machine, but we will charge for travel fee and other basic cost.
We guarantee when we get the information of the customer, our engineers will analyze immediately, then response as soon as possible, if need our engineers come, 24hours will be arrived inland, and one to two week oversea based on getting visa on time.
1.Q:Are you machinery factory or trading company?
A:We are machinery factory
2.Q:Where is your factory located?
A:We are located in Zhangjiagang City which is about 2 hours near Shanghai Airport
3.Q:How many years warranty?Can you teach us?
A: 12 months warranty. Oversea technician service is available. We can help you installation , debugging and training.
4.Q:What`s the payment method?
A: T/T, L/C,Western Union,etc
5.Q:Can we order on alibaba.com?
A:Yes!Of course!We also we give you more discount if you order on alibaba.com.
*Different of cable making equipment
*China Manufacturer copper wire tin plating machine
*Rod breakdown machine
* Offline annealing and tin-coating machine
* Rigid frame stranding machine
* Annealing machine
* Copper, Aluminum, Aluminum Alloy, Brass, Stainless Steel wire.
