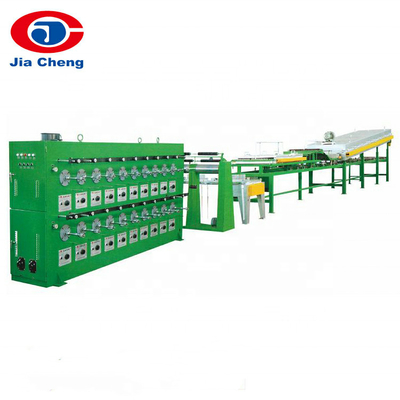

JIACHENG brand hot sale tubular drawing and annealing batch annealing and casing machine

1.0 Sets
MOQ
JIACHENG brand hot sale tubular drawing and annealing batch annealing and casing machine
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Model Number: JCJX-40H/7.5
Usage: Drawing and Annealing
Function: Drawing and Annealing
Model: JCJX-40H/7.5
Color: As Your Request
Material: Ironed Cast
Total Power: 75kw
Wire diameter: 0.1-0.7
max speed: 300m/min
Pay off bobbin size: 300mm
Take up capacity: 20-30kg
Installation size: 23m*1.5m*2m
기본 정보
Model Number: JCJX-40H/7.5, JCJX-40H/7.5
결제 및 배송 조건
Packaging Details: Wooden base and PE film
제품 설명
Why Choose Us

Jiangsu Jiacheng Technology Co., Ltd, was founded in 1990,which is located in the beautiful and newly developed city Zhangjiagang. It is close to the north of the Shanghai-Nanjing expressway, the east is Shanghai and the north is Nantong .The land-and-water transportation is convenient.The occupied area of the company is 70,000 square meters,with 9 layers office building and multiple workshops that are modern and standardized. It is a professional manufacturer in making all kinds of high speed wire drawing machine, rigid frame stranding machine, wire annealing and tinning machine， wire bunching machine and extruder , etc.
Product Overview


Products Display

Main Component:

1.Furnace support, water tank, oven.
2.Annealing furnace(40 wires, 7.5m length)
3.Tinning furnace(optional)
4.Double roller two sides take up
5.40 heads take up(double layer)
6.Electric control system.

Client factory

Main machine sample

Take up

PRODUCT SPECIFICATIONS

40H/7.5
Machine Type
JCJX-12H
JCJX-32H/3.5
JCJX-40H/4.5
JCJX-40H/6
JCJX-40H/7.5
No. of wire
12
32
40
40
40
Wire Dia.(mm)
Φ0.35-Φ1.05
Φ0.038-Φ0.08
Φ0.08-Φ0.32
Φ0.10-Φ0.65
Φ0.1-Φ0.7
Pay-off type
Overhead
Brush
Brush or overhead
Max.speed(m/min)
100
300
300
Pay off bobbin
Φ300--Φ630
Φ250
Φ300
Total power(kw)
20
50
50
65
75
More Details
Certifications
Exhibition

CLIENTS VISIT
FAQ
Q：Are you machinery factory or trading company?
A：We are a machinery factory, we can provide factory price and service.
Q: Where is your company and how to go there?
A:We are located in Zhangjiagang city which is 2 and half hour to Shanghai Pudong Airpot.
Q:I just get into this industry, i don't known how to plan?
A:I will teach you how to plan the workshop, how to install the equipment, how to save tha cost and so on.
Q:How about the spare part ?
A:We will provide you a spare parts list for your reference.
